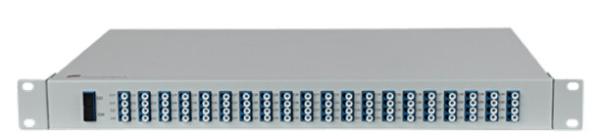

40ch Fiber Optic Mux Demux Hot arrayed waveguide grating AWG with 100GHZ

Place of Origin : Shenzhen

Brand Name : Fiberroad

Certification : CE

Model Number : FRD-AWG80

MOQ : 1PCS

Price : Pls send request details

Packaging Details : Standard neutral or brand packing

Delivery Time : 2-3 workdays

Payment Terms : 100% t/t in advance

Supply Ability : 5000pcs/Month

Link : 40Ch

Contact Now

40ch Fiber Optic Mux Demux Hot arrayed waveguide grating AWG with 100GHZ

Quick Details:

This component is designed for use within the C -band release of DWDM system. AWG device uses thermal-type thermal arrayed waveguide grating module with a unique package design is based on a silicon substrate planar waveguide optical path (PLC) grating technology, the key modules, reduce power consumption, the Ad Hoc Working Group kit, use reliable thermal plastic , low thermal conductivity and precise working temperature control, accurate channel coupling, low insertion loss, high channel isolation and high stability.

Product Features

  • Channel spacing 100GHZ (0.8 nm) up to 48 channels can be multiplexed;
  • Low insertion loss, insertion loss ≤5dB, typically 4.5dB
  • High channel isolation, adjacent isolation ≥25dB; non-adjacent isolation ≥35dB
  • High stability, dual hot-swappable power supply, 1 +1 protection;
  • Perfect indicator status;

Performance Parameters

Parameters Min Typ Max Units
Number of Channels 40
Number Channel Spacing 100 GHz
Cha. Center Wavelength C -band nm
Clear Channel Passband ±0.1 nm
Wavelength Stability ±0.05 nm
-1 dB Channel Bandwidth 0.4 nm
-3 dB Channel Bandwidth 0.6 nm
Optical Insertion Loss at ITU grid 4.5 6.0 dB
Adjacent Channel Isolation Demux 25 dB
Mux 18
Non-Adjacent,Channel Isolation Demux 32 dB
Mux 26
Insertion Loss Uniformity 1.5 dB
Directivity(Mux Only) 40 dB
Insertion Loss Ripple 0.5 dB
Optical Return loss 40 dB
PDL/Polarization Dependent Loss in Clear Channel Band 0.3 0.5 dB
Polarization Mode Dispersion 0.5 ps
Maximum Optical Power 24 dBm
Environment Operating Temperature -5℃~+75℃
Storage Temperature -40℃~85℃
Relative humidity 5% ~ 95% Non-condensing
Power supply 180V~240V/AC,-36V~-72V/DC
Safety and EMC compliance with FCC, UL, CE, TUV, CSA
Power Consumption ≤25W
Package Dimension (mm) 440(W)× 44(H)×340(D)
